Raumer Belay Group Chain Anchor 10mm


Stock Availability

Pinnacle Store - Out of Stock

Product Information

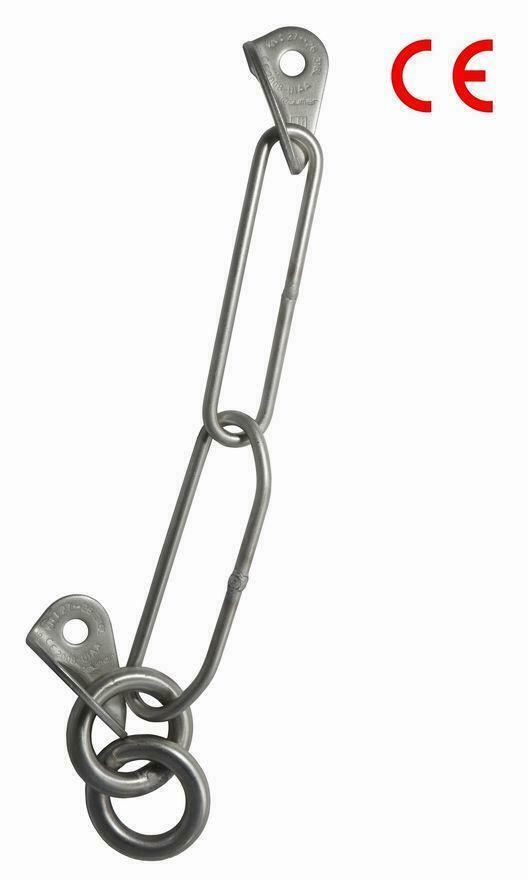

Stainless Steel Belay Station, similar to the art.218 but with two round rings.
It is particularly popular as it can be used for stances in all disciplines (climbing, mountaineering and canyoning).

The ring is always perpendicular to the rock, which makes it extremely versatile and multi-directional stop

Description

  • Composed by: 2 ROCK Ø10 (art.110), one chain (art.175) and two round 10mm-thick rings (art.177).
  • The abseil rings are created in 10mm thick stainless steel
  • Internal ring diameter = 32mm
  • The ring is perpendicular to the rock; This is useful when you need to retrieve the rope, as may be sought at any of the two branches of fallen without this being "tweaked" against the rock movement, preventing the recovery.
  • To use "stick" the rope inside the top-roping (discomfort mitigated by the absolute security that the same can not "escape" from the anchor).
  • No ring wear because the rope is in contact with a surface always different for each dropped.
  • This belay station comes at a very competitive price.
  • To meet the requirements of the EN 959 the plate is to be used with its Hang Fix. We recommend the use of our Hang Fix stainless M10L (Art.157) .

Consult the technical manual for installation, maintenance, etc

Technical Specifications

  • Material: Stainless Steel AISI 316L
  • Made in Italy
  • From 2013 most of our anchors are made in stainless steel AISI 316L, definitely much more resistant to marine corrosion of the previous AISI 304. To report this difference on every item is printed the corresponding symbol.
  • There is also a “Marina” version – Art. 180M which is highly resistant to saline corrosion. To mark the difference between stainless steel AISI 316L and the marina version of the same material, all marine-suitable anchors have been marked with a fish symbol and the initials “INOX".

Custom Belay Stations can be created on request.

Certifications

  • CE EN 795:2012 – Type A anchors
  • Complies with EN 959:2007 – Rock Anchors
  • UIAA 123-2


References

  • Weight: 382gr
  • Static Shear Strength: 27 KN
  • Extraction Static Strength: 26 KN
  • Usable by 1 person at a time
  • Warranty: 3 years
