Raumer Stainless Steel Welded Ring


Stock Availability

Pinnacle Store - Only a few left (4)

Product Information

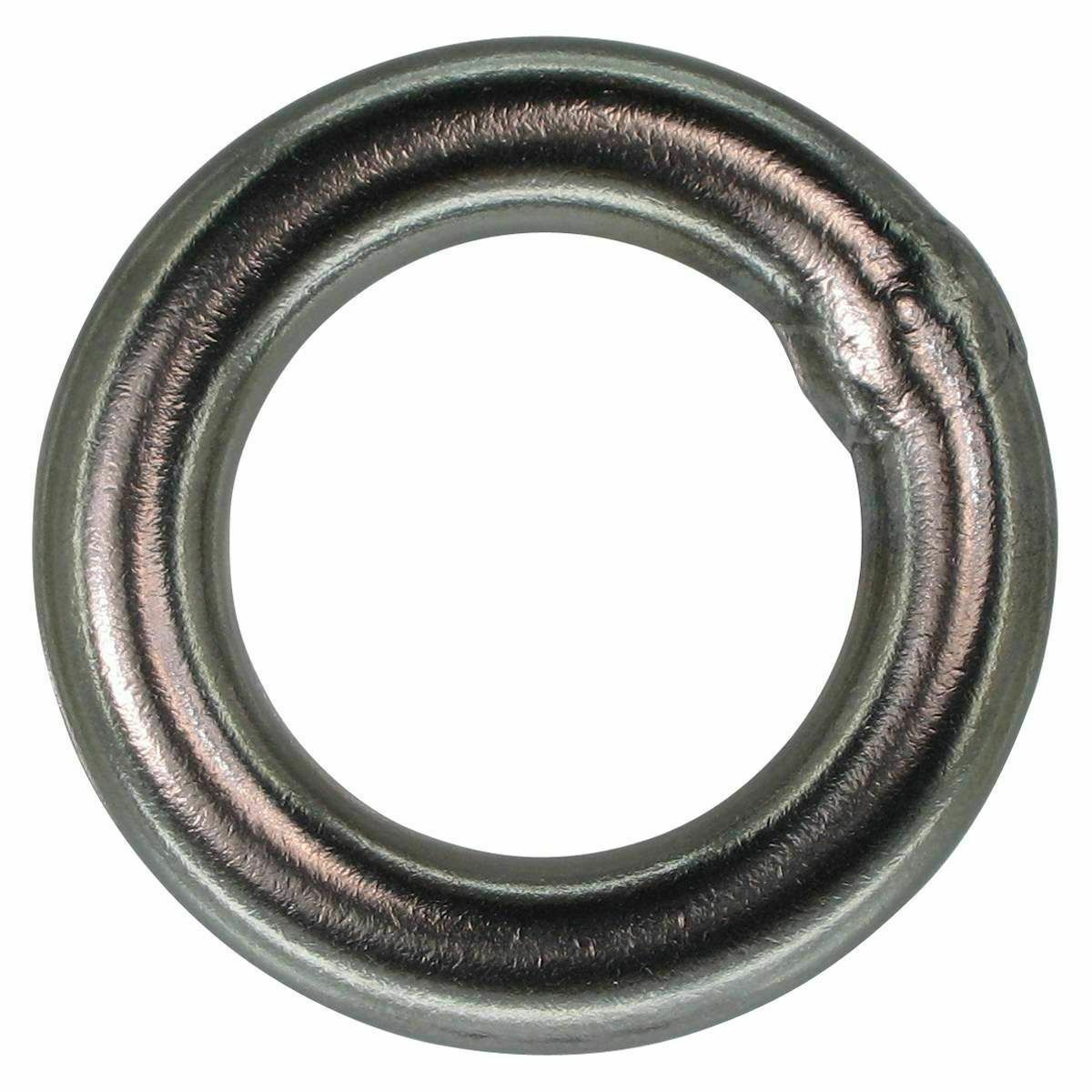

Round Stainless Steel RING Ø10 – Internal Diameter = 32mm

  • Circular stainless steel AISI 316L ring, welded using TIG (Tungsten Inert Gas) with an internal diameter of 32mm.
  • Barrel finished, smoothed and polished.
  • The surface allows for easy insertion of the rope and exerts the minimum damage to the sheath.
  • As the pressure is spread over the full 360°, the wear on the ring is almost non-existent.
  • Also used to equip improvised abseil stations using cordage and a bolt-chain-carabiner combination.

Technical Specifications

  • From 2013 the material used in the majority of our anchors is now stainless steel AISI 316L, which offers a higher resistance to marine corrosion than the former AISI 304. To highlight this change each article is stamped with the relevant symbols.
  • Attention: There is also a “Marina” version of this anchor which is highly resistant to saline corrosion. To mark the difference between stainless steel AISI 316L and the marina version of the same material, all marine-suitable anchors have been marked with a fish symbol and the initials “INOX".
  • We recommend reading the attached PDF document for a detailed explanation of the problems presented by marine corrosion.
  • MARINA version: Art. 177M

Reference

  • Weight: 82 gr
  • Ra = 40 kN
